INDUSTRIAL MEP & UTILITIES

We are committed to delivering robust supporting infrastructure for your seamless operations. Through our MEP and industrial utility installation services, PT Tri Daya Maxima ensures flawless system integration. TDM executes every installation with high precision, resulting in systems that are easy to maintain and proven to be energy-efficient.

PT Tri Daya Maxima's engineers and technicians preparing to execute industrial MEP and utilities installations with strict safety standards.
Home » Services » Industrial MEP and Utilities

INDUSTRIAL MEP & UTILITIES

Services
Download MEP Catalog (PDF)

Size: 2.5 MB

Need a utility system consultation?

Chat via WhatsApp ->

Uninterrupted Energy & Fluid Integration

THE LIFELINE OF YOUR FACILITY

A poor utility system is a ticking time bomb for production downtime. We design installations that are precise, easy to maintain, and energy-efficient.

Mechanical, Electrical, and Plumbing (MEP) systems are the nervous system of an industrial facility. A single failure at a pipe joint or a short circuit in a panel can bring an entire production line to a halt.
As a trusted MEP contractor, PT Tri Daya Maxima does not simply “lay cables and pipes.” We conduct rigorous Load Studies and Stress Analysis to ensure every distribution line operates at peak efficiency, strictly adhering to ASME safety standards (for piping) and NFPA guidelines (for fire protection).
ELECTRICAL
MECHANICAL (HVAC)
PLUMBING & FLUIDS

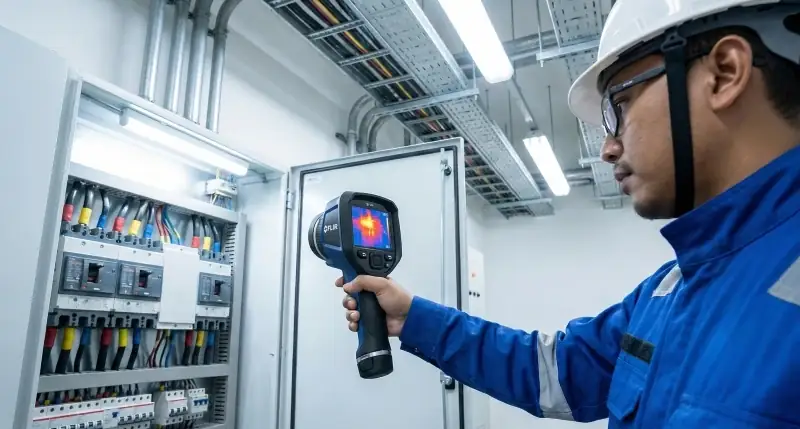

MEP audit process and electrical system inspection using a thermal imager to prevent plant utility downtime in our industrial MEP and utilities services.
Comprehensive workflow details to ensure planning accuracy from upstream to downstream

SCOPE & TECHNICAL SPECIFICATIONS OF MEP AND INDUSTRIAL UTILITY INSTALLATION SERVICES

The scope of our MEP and industrial utility installation services ranges from feasibility studies and detail engineering design to fabrication, construction, and commissioning. Choose the service categories below to view our specialties in mechanical electrical plumbing services.

Process Piping

Carbon Steel/Stainless Steel pipe installations for chemical/oil product flows (ASME B31.3 Standard).

Utility Piping

Piping lines for Steam, Compressed Air, and Water Treatment operations.

HDPE Pipe Installation

Butt Fusion welding for mining/plantation water distribution networks.

Power Distribution

Installation of LVMDP Panels, Capacitor Banks, and Transformers.

Cable Support Systems

Neat and structured Cable Tray/Ladder installations for ease of tracing.

Instrumentation

Installation of sensors (Flow/Level/Pressure Transmitters) and PLC control systems.

Industrial HVAC

Precision air conditioning systems for Control Rooms and Server Rooms.

Exhaust Systems

Ventilation ducting to extract heat/gas from production areas.

Sanitation

Clean water and domestic wastewater systems for plant facilities.

Hydrant Systems

Installation of pillar hydrants (Outdoor) and box hydrants (Indoor) networks.

Sprinkler Networks

Temperature-based automatic extinguishing systems for warehouse asset protection.

Pump Rooms

Installation of Main Pumps, Jockey Pumps, and Diesel Pumps in compliance with NFPA standards.
MORE THAN JUST TECHNICAL DRAWINGS

MEP Installation Advantages

We do not just hand over technical drawings. We deliver cost certainty, asset security, and ease of field execution through the following pillars:

Leak-Free Guarantee

Zero leakage assurance through Hydrostatic Testing at 1.5x working pressure for 24 hours.

01

Precision Cable Management

Aesthetic and labeled cable tray arrangements, making it easier for the maintenance team to trace cable routes.

02

Energy Efficiency

Accurate electrical load calculations and appropriate pipe diameter selection to minimize voltage drops and pressure losses.

03

Standard Compliance

Installations fully comply with PUIL 2011 (Electrical), SNI (Plumbing), and NFPA (Fire Fighting).

04

Precision Synergy Between Virtual Planning and Construction Reality

PRECISION REALIZATION: FROM SCREEN TO SITE

We prove that mature design results in seamless construction. Below is our engineering accuracy track record across various industrial sectors.
Featured Project

2,000 KL Storage Tank - Utility Piping Installation

Murung Raya, Central Kalimantan | 2020
The primary challenges were the risks of water hammer and thermal expansion in the high-pressure steam pipelines connected to the facility.
TDM implemented a calibrated Expansion Loop design and installed Steam Traps at crucial points. All piping weld joints underwent 100% NDT (Non-Destructive Testing) to ensure the operational safety of the thermal system with zero risk of leaks.
  • Scope
  • Process & Utility Piping
  • Material
  • ID 20.000mm x T 7.200mm
  • Standard
  • ASME B31.3

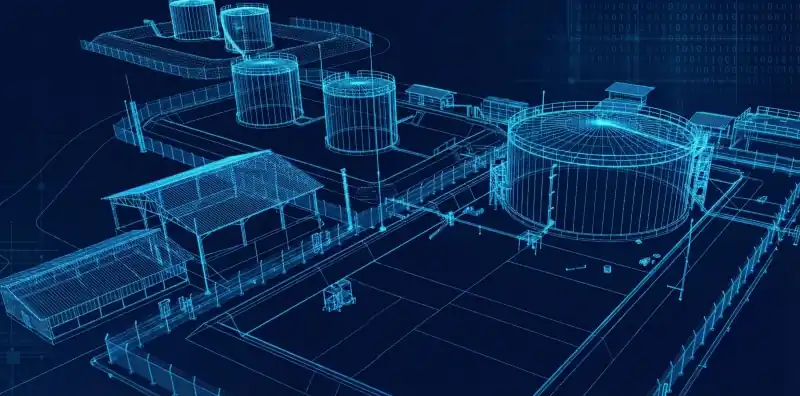

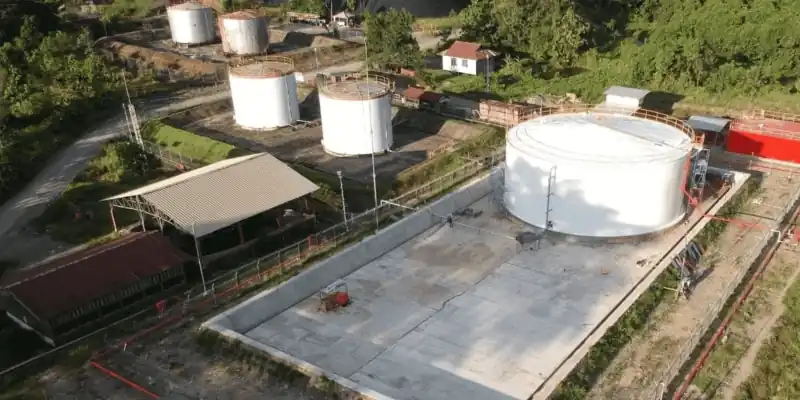

Installation of Expansion Loop designs and high-pressure Steam Traps on tank projects.Installation of Expansion Loop designs and high-pressure Steam Traps on tank projects.
Featured Project

5,000 KL Storage Tank - Distribution System & Manifold

Palaran, East Kalimantan | 2025
Accommodating a massive storage volume, the main challenge of this project was to design an efficient loading and unloading manifold line free from pump cavitation risks.
TDM’s MEP team installed a large-diameter Process Piping network with high fit-up precision, ensuring a smooth operational flow rate for the plant while eliminating pressure loss in the main distribution line.
  • Scope
  • Manifold Piping & Pump Installation
  • Material
  • High-Pressure Carbon Steel Pipe
  • Standard
  • ASME B31.3 & API 5L

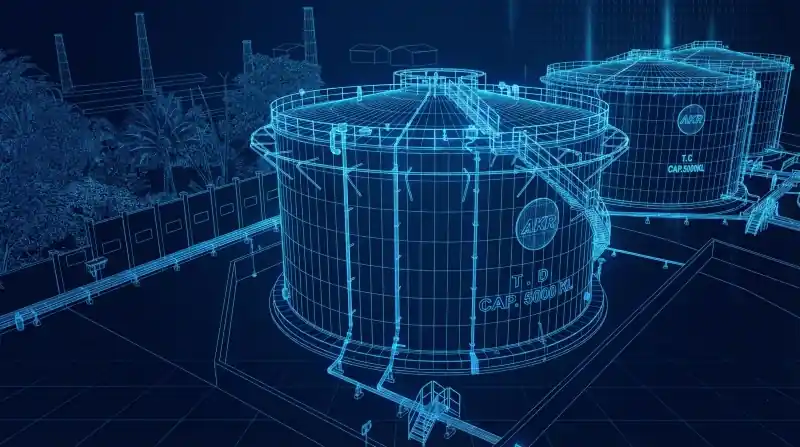

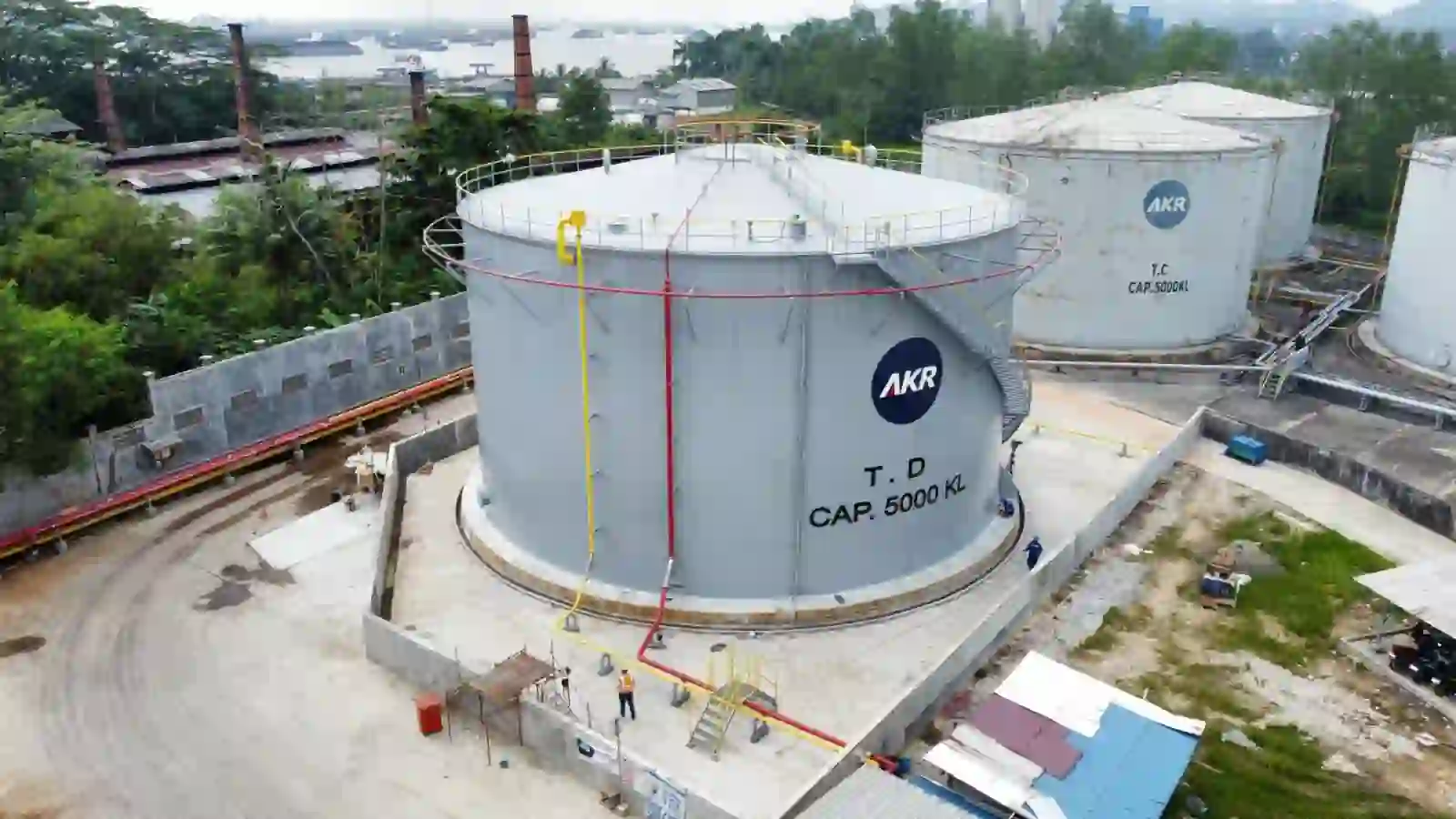

Supporting industrial MEP and utilities installation project for a 5,000 KL Storage Tank facility.Supporting industrial MEP and utilities installation project for a 5,000 KL Storage Tank facility.
Featured Project

2x500 KL Fuel Storage Tank - Electrical & Instrumentation

Tanjung Selor, North Kalimantan | 2022
As a fuel oil storage facility, this operational area falls under a high-level Hazardous Area classification with a significant risk of sparks.
TDM implemented Explosion Proof (Ex-d) electrical panel installations, strictly protected cable routing, and an integrated Grounding & Lightning Protection system. We also integrated Level Transmitters for precise and safe fluid volume monitoring.
  • Scope
  • Electrical, Instrumentation & Grounding
  • Qualification
  • Explosion Proof (Hazardous Area)
  • Standard
  • PUIL 2011 & NFPA

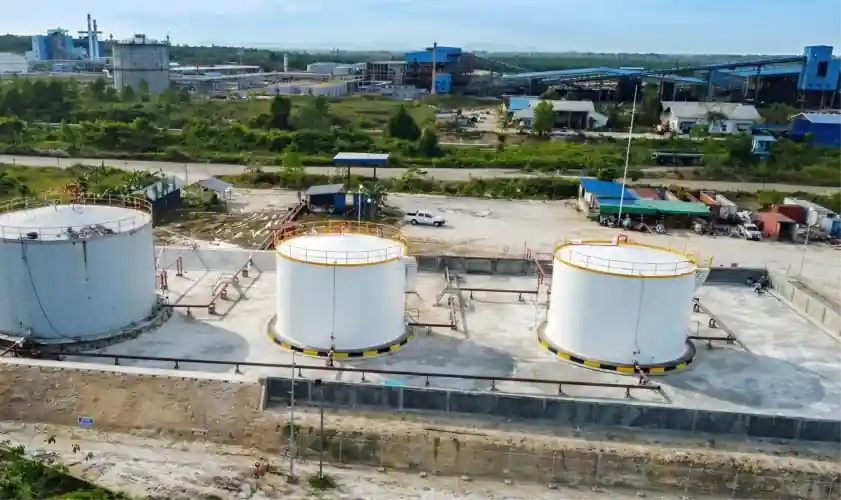

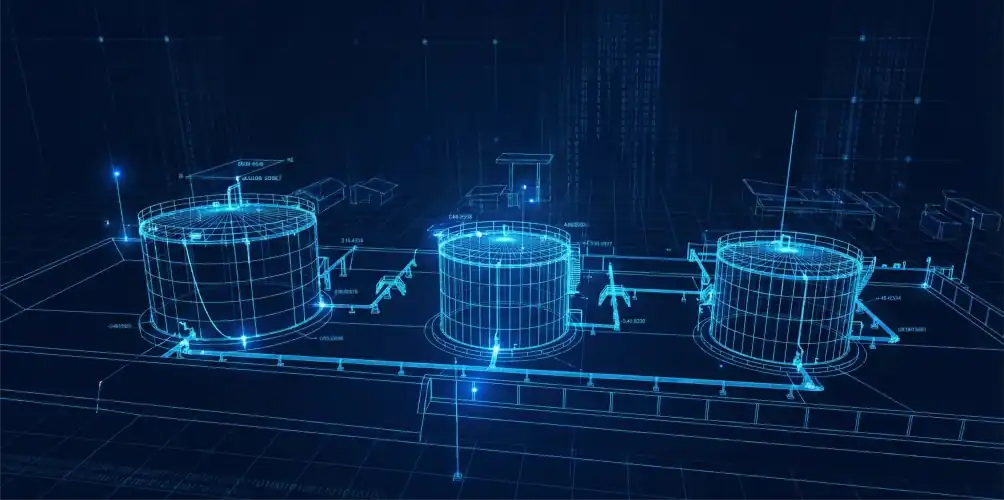

Implementation of piping systems and plant utilities on a 2x500 KL fuel storage tank project.Implementation of piping systems and plant utilities on a 2x500 KL fuel storage tank project.
Building Resilient and High-Value Industrial Assets

MEP STANDARDS & SOFTWARE

We do not take risks with pirated software or baseless assumptions. Every design line is backed by officially licensed software and validated according to international standard codes to ensure flawless industrial utility integration.
SIMULATION SOFTWARE
etap

ETAP

Electrical power system analysis.

AutoCAD

AutoCAD MEP

3D piping and cable drafting.

HAP

HAP (Hourly Analysis Program)

HVAC cooling load calculations.

CODES & STANDARDS
ASME

ASME B31.3

Process Piping Code.

PUIL

PUIL 2011

General Requirements for Electrical Installations.

NFPA

National Fire Protection Association.

SNI

SNI

Standar Nasional Indonesia.

In Need of Reliable MEP and Industrial Utility Installation Services?

Avoid fire risks and energy waste caused by haphazard installations. Consult your plant’s electrical, piping, and HVAC systems with our expert team today.
